Angle Grinder with H.30 Handpiece AK69130

Price:
$369.00
SKU:
AK69130
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share


Product Description

Foredom's New Angle Grinder attachment is designed for use with our most popular H.30 Chuck-Style Handpiece. This quality-machined, sturdy, and compact device works with 2" and smaller discs and 2" wheels with 3/8" arbor holes. We offer 100+ accessories for this versatile product that can be used to grind, sand, and polish on various types of materials including metal, wood, stone, glass, ceramics, bondo and more. 4 new Screw-Lok accessories have been added to this kit at no extra charge. See Kit contents below.
Optimum Operated Speed: 10,000 to 15,000 RPM, Maximum Speed: 18,000 RPM for short intervals
1 to .75 Gear Reduction

 Accessories included in the kit may be changed or substituted with comparable products.





Use in Forward Rotation ONLY.



28590.jpg  click here for Consumables

Foredom's popular H.30® Chuck Style Handpiece comes with HPCK-0 CHuck Key in molded plastic handle.

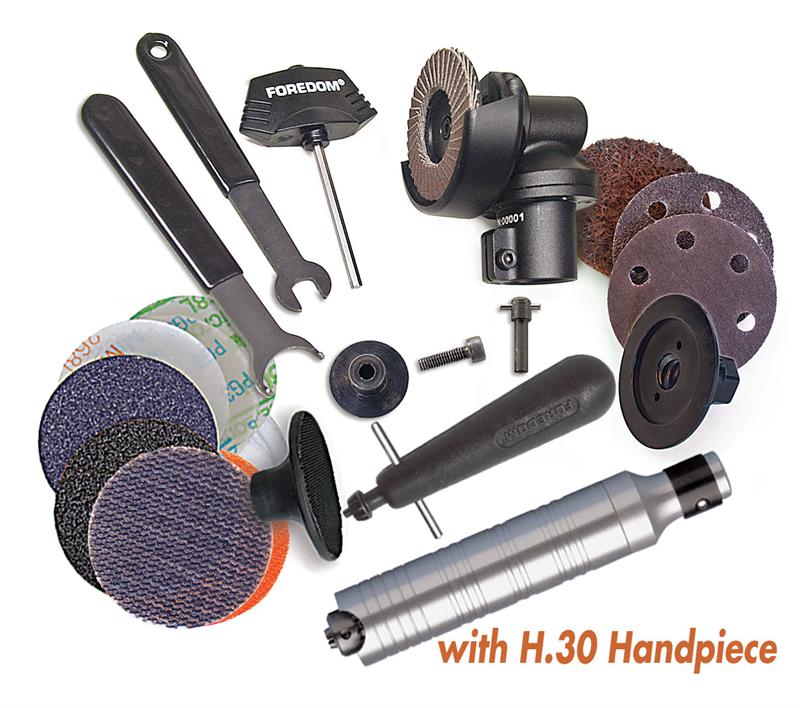

Angle Grinder comes with the following:

  1. A-2202 Flap Wheel (installed), 120 grit
  2. A-10033 Sanding Screen, 120 grit
  3. A-10042 Disc Holder Protector Pad
  4. A-4592 Imperial Microfinishing Film PSA Disc, 600 grit
  5. A-4593 Imperial Microfinishing Film PSA Disc, 400 grit
  6. A-4594 Imperial Microfinishing Film PSA Disc, 320 grit
  7. A-5632 Aluminum Oxide PSA Sanding Disc, 60 grit
  8. A-5683 Ceramic Purple PSA Sanding Disc, 80 grit
  9. A-69222 Disc Mandrel
  10. A-10041 PSA Velcro Disc (5)
  11. A-69211 Drive Pin
  12. A-69217 Face Spanner Wrench
  13. A-69218 Open-End Wrench
  14. A-69219 Hex Wrench, 3mm
  15. A-69212L Long Hub, 8mm high, 14mm long mounting screw
  16. A-69225 Screw-Lok Disc Mandrel - New
  17. A-3604 Screw-Lok Aluminum Oxide Sandpaper Disc with holes, 120 grit - New
  18. A-3602 Screw-Lok Aluminum Oxide Sandpaper Disc with holes, 40 grit - New
  19. A-3522 Screw-Lok Non-woven Abrasive Pad, 80 grit - New

One-Year Limited Warranty.
Specifications:
Length: 3-1/8", Width: 2-1/2" (at widest), Depth: 2-3/4"

Click here for Video Clip to learn more about this versatile tool:

1. Kit Contents and Instructions for Installing Angle Grinder onto Handpiece:
